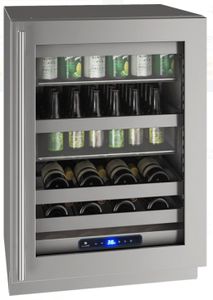

U-Line® 5 Class 24" Stainless Steel Beverage Center with LED Lighting


Model #:

HBV524SG01A

Model #: HBV524SG01A
1373196
U-Line
$99,999.00

At a Glance

Product Dimensions 33.69"h x 23.63"w x 22.94"d

The passive cooling system works to cool drinks with efficiency. Store up to 111 (12 oz) cans or 68 bottles, and 14 bottles of wine (750 mL). 5 Class units feature an industry leading variable speed compressor that delivers energy efficiency, rapid temperature response, and quiet operation. Custom Panel and Handle sold separately.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview
Industry Exclusive:

Full-depth lower interior maximizes storage options

Industry Leading:

Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation

Stainless steel interior

Stainless steel cabinet, toe-kick, and accents

U-Adjust Interior: 19 adjustable positions

Two removable, full-extension slide and secure bins

Two removable, full-extension wine racks

Volume of 5.2 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 111 cans (12 oz)

Temperature range: 33°F - 70°F

Convection cooling system provides a quick cool down and consistent temperature

Touch Pad Controls

Adjustable bright white or blue LED lighting

Digital touch pad control with blue LED display

Soft close door with articulating hinge

Stainless steel handle (7/8" diameter)

Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)

Customization

Field reversible door is shipped right-hand hinged

Built-in or freestanding

Four adjustable leveling legs

For over five decades and through three generations, U-Line continues to be the leader in innovation, quality and value in the premium built-in undercounter ice making, refrigeration and wine preservation market. The Uihlein family traces its roots back to southern Germany. In the mid-1800's several family members immigrated to the U.S. and were an instrumental part of a substantial brewery. Available at AJ Madison.

*Beverage center only, all other products are sold separately. Images may not reflect actual size. Color in images may differ in person; see retailer for the actual finish.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)128
Width (in.)23.63
Appliance ColorStainless Steel
ENERGY STAR CertifiedNo
Depth (in.)22.94
Height (in.)33.69
Locking DoorNo
Door Swing OptionReversible Hinge
Number of Shelves2
ColorStainless Steel
Installation TypeBuilt-In or Freestanding
Depth TypeCounter Depth
Series5 Class
Under The Counter CapableYes
Color Finish NameStainless Steel
Bottle Capacity68
Custom Panel ReadyYes
Total Capacity (cu. ft.)5.2
Voltage115
Frequency60
Amp5

Additional Specifications

Capacity Can (12 oz): 111
Capacity Wine Bottle (750 ml): 14
Control Type: Digital Touch Pad
Refrigerant Type: R600a
Temperature Range: 33°F - 70°F
Interior Lighting: LED

Certifications

Sabbath Mode: Yes
Star-K Certified: Yes

Warranty

Parts & Labor: 2 Years (Optional 3rd Year when unit is registered within 60 Days)
Sealed System (Parts Only): 5 Years
Registration: http://www.u-line.com/u-lineregistration
WarningProposition 65 Warning for California Residents
