Product Dimensions 2.75"h x 29.63"w x 20.38"d

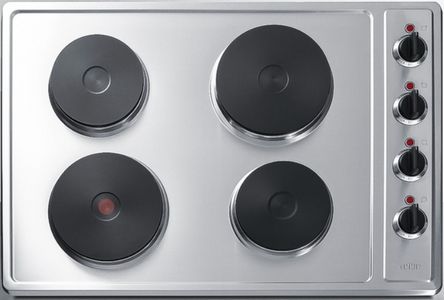

Sized at 30" wide, the CSD4B300 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware.Read More
View Options
The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety.
With its modern style and durable design, the CSD4B300 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. Additional sizes are available in solid disk, as well as traditional radiant, coil, induction, and gas. Browse the full Summit product line to explore your options.
30" wide 230V cooktop with four solid disk heating elements
Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
Surface is made from stainless steel for an attractive and easy to clean look
Solid metal elements hold up to heavy duty use
Fully sealed cast iron elements offer easier cleanup than traditional coil elements
1000W elements accommodate most lighter cooking needs
Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
Knobs require a small amount of force to help prevent accidents
Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Operating indicators light up to show which burner is in use
Fits common counter cutout sizes that are 28.5" W x 19 3/4" D
Professional installation required
*Cooktop only, all other products sold separately. Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
General Specs | |
Product Weight (lbs.) | 26 |
Color | Stainless Steel |
Element Type | Radiant |
Fuel Type | Electric |
Depth (in.) | 20.38 |
Height (in.) | 2.75 |
Width (in.) | 29.63 |
Manufacturer Warranty | 1 Year Parts & Labor |
Appliance Fit Width (in.) | 30 |
Color Finish Name | Stainless Steel |
ADA Compliant | No |
ENERGY STAR Certified | No |
Commercial Use Approved | No |
Smart Compatible | No |
Burner Type | Sealed |
Number of Elements/Burners | 4 |
Cut Out Depth | 19.75 |
Cut Out Width | 28.5 |
Cut Out Height | 4.13 |
Voltage | 230 |
Frequency | 60 |
Amp | 23 |
Cooktop Features | Hot Surface Indicator Light |
Cooktop Surface | Cast Iron |
