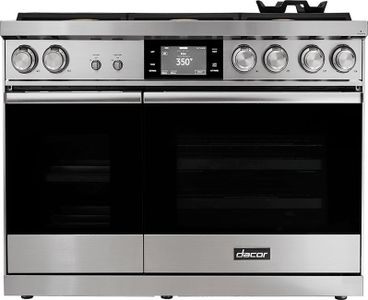

Product Dimensions 36.13"h x 47.88"w x 27.5"d
Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.Read More
View Options
For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.
Automatically tilting, 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
Use multiple stock pots at a time and easily slide pots and pans across spacious cooking surface of 15" wide grates.
Utilizing an external steam generator, quickly and effectively deliver the right amount of steam at the right time for that perfect culinary result.
Superior consistency and zero flavor transfer with Dual 4-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
Automatically reignites burners if they are accidentally extinguished.
A combination of seamlessly integrated LED and halogen lights fill the oven with rich illumination.
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and increases the speed as necessary, with the use of a temperature sensor.
General Specs | |
Color | Stainless Steel |
Handle Color | Stainless Steel |
Air Fry | No |
Cooktop Features | Continuous Grate, Digital Display |
Appliance Fit Width (in.) | 48 |
Manufacturer Warranty | 2 Year Parts & Labor |
Total Capacity (cu. ft.) | 6.9 |
Color Finish Name | Stainless Steel |
Collection | Modernist |
ADA Compliant | No |
Induction Cooking | No |
Range Type | Pro-Style |
Number of Elements/Burners | 6 |
Fuel Type | Dual Fuel (NG) |
Number of Oven(s) | Double |
Depth (in.) | 27.5 |
Height (in.) | 36.13 |
Width (in.) | 47.88 |
Oven Features | Bluetooth Enabled, Steam Oven, Wi-Fi Capable |
Oven Cleaning Method | Self Cleaning |
General Properties | |
Cooking Modes Large Cavity | Bake - Broil - Convection Bake - Convection Roast - Convection Broil - Four-Part Pure Convection - Pure Convection Sear |
Cooking Modes Small Cavity | Bake - Broil - Convection Bake - Convection Roast - Convection Broil - Four-Part Pure Convection - Real Steam - Steam Bake - Steam Roast |
Oven Capacity (Cubic Feet) | 4.8 (LG Oven) / 1.8 (SM Oven) |
Oven Performance | |
Bake Element | 3,000W - 8 Pass (LG) |
Broil Element | 4,400W - 10 Pass (LG); 2,400W (SM) |
Convection Element | 1,300W (Each - 2,600W Total) (LG) / 2,000W (SM) |
Steam Heater | 2,000W (SM) |
Burner Performance | |
Sealed Burners | Yes |
PERMA-FLAME™ (Auto Re-Ignition) | Yes |
Control Features | |
Number of Knobs | 6 + 2 Lamp Knobs |
Control Method | 7” Pop-Up LCD |
Wi Fi | Yes |
Bluetooth (Hood Connection) | Yes |
Illulmina™ Burner Knobs | Yes / White |
Highlighting Color | White |
Ambient Lighting | Yes (Dimming) |
Clock | Yes |
Delay Start | Yes |
Kitchen Timer | Yes |
Time of Day (12 Hr/24 Hr) | Yes |
Temperature (F / C) | Yes |
Child Lock | Yes |
Sound On/Off | Yes |
Manual Lighting On/Off | Yes |
Accessories Included | |
Gliderack™ | 2 (LG) |
Standard Rack | 1 (LG) / 1 (SM) |
Temperature Probe | 1 EA (BOTH) |
Wok Ring | 1 |
Convection Filter | 2 (LG) / 1 (SM) |
Steam Tray | 2 (SM) |
Half Steam Tray | 2 (SM) |
Brass/Black Burner Caps | Yes |
Additional Features | |
Cleaning Type | Self Clean (Primary) |
GreenClean™ | (Both Ovens) |
Type of Grate | Continuous Cast Iron |
Cavity | Black Enamel Coating |
Rack Positions | 6 (LG) / 4 (SM) |
Convection Type | Dual (LG) / Single (SM) |
Lighting | BrightVue™ - LED + Halogen |
Dimensions | |
Required Cutout Size (W X D) (IN.) | 48” X 24” |
